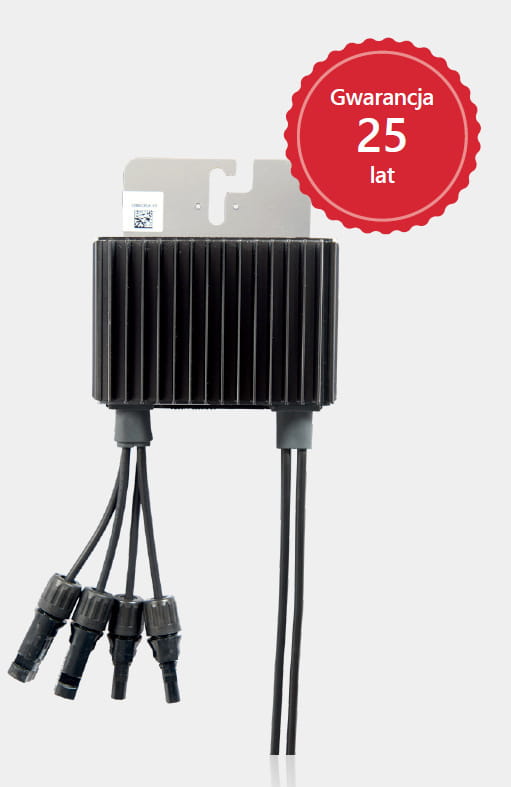

SolarEdge Optimizer P1100-4R MXM BT

Product specification:

With SolarEdge power optimizers, you can get the maximum power out of any solar installation. The P1100 optimizer is ideal for modules up to 1100 Wp.

• Applies to models SE25K and above
• Maximum power at the module level
• Not the entire string is shaded
• Permanent MPP tracking
• Module-based monitoring possible
• Greater efficiency in shading and in different directions
• Modules of different power classes can be combined without losses
• max. rated input power: 1100W
• MPPT working range 12.5-105V
• short-circuit current 14 A
• Min. 14 optimizers per string for 3-phase inverters
• Input cord: 1.3m
• Output cord: 2.2m
• Simple installation thanks to the MC4 connection
• The SafeDC function automatically reduces the voltage to 1 V per module in the event of a fault
• Simple mounting on the supporting structure using a hammer screw
• Compatible with all SolarEdge inverters
