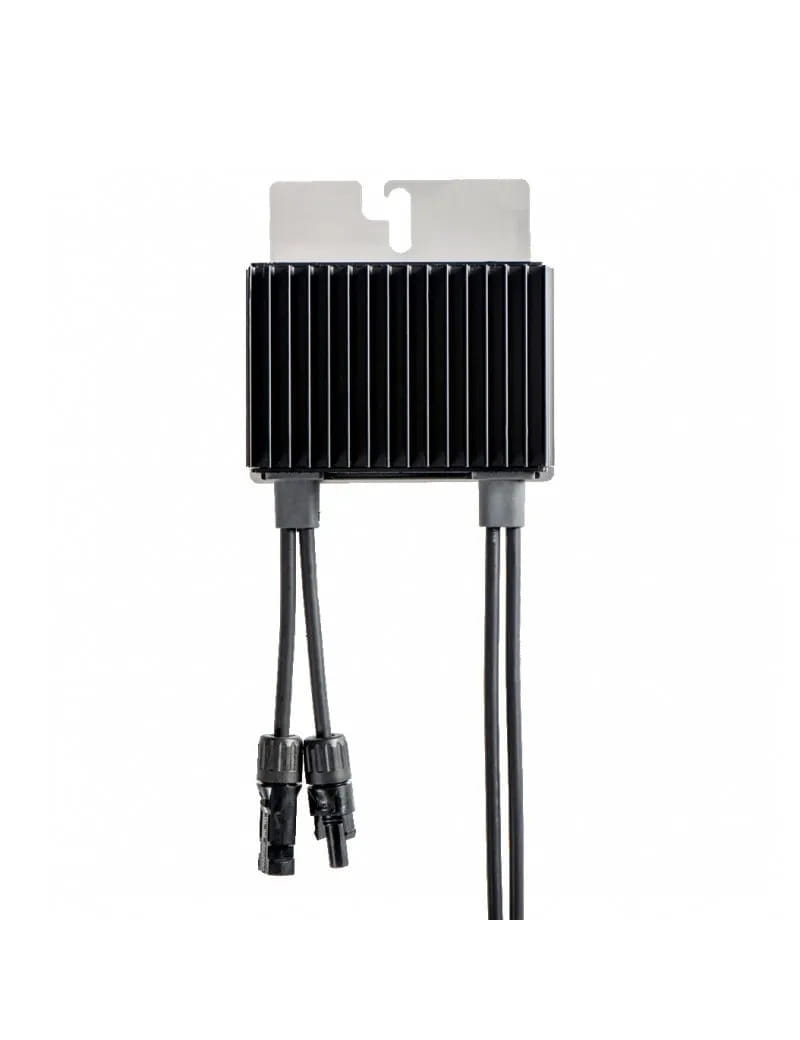

SolarEdge Optimizer P505-4R M4M BM

Product specification:

With SolarEdge power optimizers, you can get the maximum power out of any solar installation. The P505 optimizer is perfect for modules up to 505 Wp.

• Maximum power at the module level
• Not the entire string is shaded
• Permanent MPP tracking
• Module-based monitoring possible
• Greater efficiency in shading and in different directions
• Modules of different power classes can be combined without losses
• MPPT operating range 12.5-83V
• short-circuit current: 14 A
• Min. 6 optimizers per string for 1-phase inverters
• Min. 14 optimizers per string for 3-phase inverters
• Simple installation thanks to the MC4 connection
• Input cable: 0.16m
• Output cable: 1.2m
• The SafeDC function automatically reduces the voltage to 1 V per module in the event of a fault
• Simple mounting on the supporting structure using a hammer screw
• Compatible with all SolarEdge inverters
