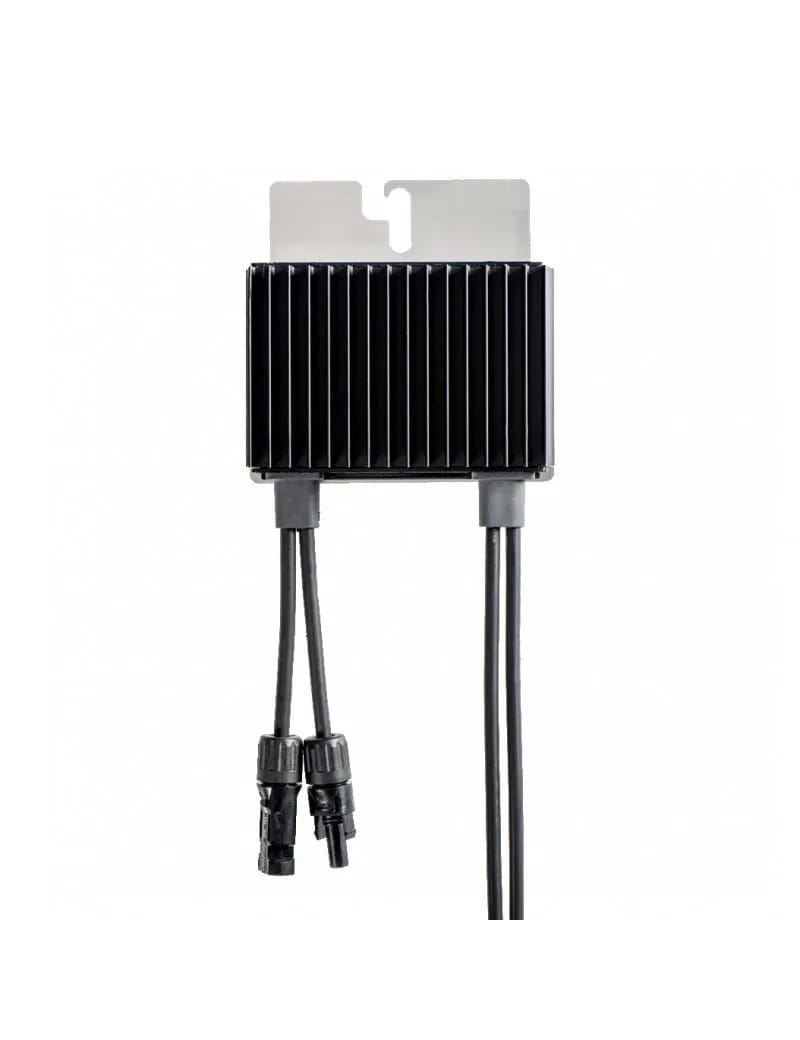

SolarEdge Optimizer P801-4R MLM RY

Product specification:

With SolarEdge optimizers, you can get the maximum power out of any solar installation. The P801 optimizer is perfect for module sizes up to 800 Wp.

• Applies to models from SE16K onwards
• Maximum power at the module level
• Not the entire string is shaded
• Permanent MPP tracking
• Module-based monitoring possible
• Greater efficiency in shading and in different directions
• Modules of different power classes can be combined without losses
• Max. Nominal Input Power: 800W
• MPPT working range 12.5-105V
• short-circuit current 11.75 A
• Min. 14 optimizers per string for 3-phase inverters
• Input cable: 0.9m
• Output cord: 2.2m
• Simple installation thanks to the MC4 connection
• The SafeDC function automatically reduces the voltage to 1 V per module in the event of a fault
• Simple mounting on the supporting structure using a hammer screw
• Compatible with all SolarEdge inverters
