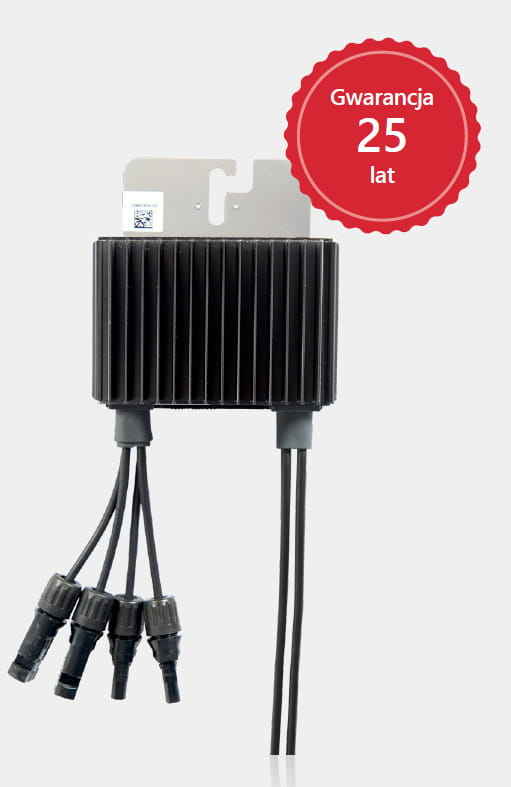

SolarEdge Optimizer P850-4R MXM BY

Product specification:

With SolarEdge power optimizers, you can get the maximum power out of any solar installation. The P850 optimizer is perfect for module sizes up to 850 Wp.

• Applies to models from SE16K onwards
• Maximum power at the module level
• Not the entire string is shaded
• Permanent MPP tracking
• Module-based monitoring possible
• Greater efficiency in shading and in different directions
• Modules of different power classes can be combined without losses
• Max. Nominal Input Power: 850W
• MPPT operating range 12.5 - 105V
• short-circuit current: 14.1 A
• Min. 14 optimizers per string for 3-phase inverters
• Simple installation thanks to the MC4 connection
• Input cable: 1.3m
• Output cable: 2.2m
• The SafeDC function automatically reduces the voltage to 1 V per module in the event of a fault
• Simple mounting on the supporting structure using a hammer screw
• Compatible with the SolarEdge SE16K inverter and above
